National Weather Doppler Radar Architecture And Forecasting Protocols For 2026
The national weather doppler radar network represents the backbone of severe storm tracking, aviation safety, and public meteorological awareness. Operating primarily through the WSR-88D (Weather Surveillance Radar, 1988, Doppler) system and the emerging phased-array upgrades, this infrastructure provides continuous volumetric scanning of the atmosphere. Understanding how these systems process electromagnetic pulses, interpret Doppler shifts, and integrate with modern modeling platforms is essential for meteorologists, emergency managers, and technology enthusiasts navigating the 2026 atmospheric monitoring landscape.
Core Technical Specifications of the WSR-88D Network
The United States National Weather Service, alongside the Federal Aviation Administration and the Department of Defense, maintains over 160 operational radar sites nationwide. These systems utilize S-band frequencies ranging from 2.7 to 3.0 GHz, allowing penetration through heavy precipitation while maintaining high sensitivity to low-reflectivity targets like clear-air turbulence boundaries and insect migration rings.
Operational Frequency Advantages S-band deployment offers an optimal balance between signal attenuation in extreme rainfall and target resolution. By operating in this specific wavelength band, the network minimizes beam degradation during catastrophic convective events while accurately measuring radial velocity across extended geographic ranges.
Each site features a 28-foot parabolic dish antenna housed within a protective radome, rotating at varying speeds depending on the selected volume coverage pattern (VCP). Modernized signal processors analyze three primary base data products simultaneously:

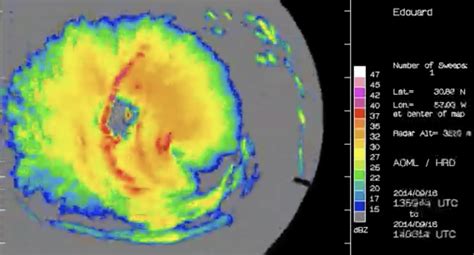

- Reflectivity (Base Reflectivity): Measured in dBZ, quantifying the intensity of precipitation droplets, hail stones, or debris lofted by tornadoes.
- Radial Velocity: Utilizing the Doppler effect, this metric determines the speed and direction of precipitation moving toward or away from the radar site.
- Spectrum Width: A measure of velocity variability within the radar sample volume, indicating turbulence and wind shear zones.
Evolution of Dual-Polarization and Phased-Array Technologies
The integration of dual-polarization technology revolutionized meteorological analysis by transmitting both horizontal and vertical pulses. This dual-transmission methodology allows meteorologists to discern the actual shape, size, and orientation of hydrometeors rather than just their mass.
In 2026, the modernization pipeline places heavy emphasis on transitioning select high-risk corridors toward multifunction phased-array radar (MPAR) architectures. Traditional mechanical dishes require seconds to complete a full volumetric scan, whereas electronic beam steering updates atmospheric profiles in fractions of a second.
| Radar Parameter | Traditional WSR-88D (Single-Pol) | Modern Dual-Pol WSR-88D | Next-Gen Phased-Array Systems |
|---|---|---|---|
| Antenna Movement | Mechanical continuous rotation | Mechanical continuous rotation | Electronic beam steering (no moving parts) |
| Scan Update Rate | 4.5 to 6 minutes per volume | 4.5 to 6 minutes per volume | Sub-minute rapid updates |
| Hydrometeor Discrimination | Limited (assumes spherical drops) | High (distinguishes rain, snow, hail, debris) | Advanced multidimensional polarimetric profiling |
| Maintenance Profile | High mechanical wear on gears/motors | Moderate mechanical wear | Extremely high reliability, solid-state components |
Doppler radar set for upgrade by National Weather Service - Cayman Compass
Interpreting Velocity Signatures and Debris Detection Algorithms
Severe weather identification relies heavily on recognizing specific velocity couplets and radar anomalies. When a rotating mesocyclone develops within a supercell thunderstorm, the radar detects air moving toward the site (green velocity signatures) adjacent to air moving away from the site (red velocity signatures).
Advanced algorithms deployed across national processing nodes automatically flag tornadic vortex signatures (TVS) and correlation coefficient drops. The correlation coefficient measures how uniform the targets are within a sample volume. When a tornado strikes the ground, it lofts trees, building materials, and soil into the air. This non-uniform mixture of debris drastically reduces the correlation coefficient, creating a distinct "debris ball" signature on the display that confirms a tornado is actively producing damage.
Step-by-Step Guide to Analyzing Real-Time Radar Data
- Select Base Reflectivity (0.5-Degree Tilt): Locate intense precipitation cores, hook echoes, or bowing structures indicative of straight-line wind damage or rotation.
- Examine Storm-Relative Velocity: Switch to velocity products to check for tight red-green couplets indicating rotation, keeping distance from the radar site in mind to account for beam height limitations.
- Verify Dual-Pol Products: Check the Differential Reflectivity (ZDR) and Correlation Coefficient (CC) to isolate heavy hail cores or confirm debris lofting signatures during active warnings.
- Cross-Reference Environmental Data: Compare radar returns with surface observations, spotter reports, and high-resolution mesoscale model outputs to gauge storm longevity.
Comparative Analysis of Data Access Platforms
Accessing national weather doppler radar data has evolved from dedicated mainframe terminals to cloud-native streaming architectures. Emergency managers, researchers, and hobbyists utilize distinct platforms tailored to specific bandwidth and analytical requirements.
- NWS GIS and Web Viewers: Official government portals offering standardized base products with zero latency, optimized for public safety announcements and basic situational awareness.
- Open-Source Meteorological Toolkits (e.g., Py-ART): Advanced software packages utilized by academic researchers to ingest raw Level II data for custom algorithm development and academic study.
- Commercial Weather Applications: Consumer-facing mobile and desktop platforms that ingest national radar feeds, overlaying them with proprietary lightning detection networks and alert polygons.
Frequently Asked Questions
What is the primary function of a national weather doppler radar?
A national weather doppler radar detects precipitation location, intensity, and movement while utilizing the Doppler effect to calculate the speed of winds moving toward or away from the sensor. This capability enables real-time tracking of severe storms, flash floods, and tornadoes.
How does dual-polarization technology improve severe weather forecasting?
Dual-polarization transmits both horizontal and vertical pulse waves, allowing meteorologists to determine the physical shape, size, and type of falling precipitation. This helps distinguish heavy rain from hail and identifies lofted tornado debris with high accuracy.
Why do radar beams sometimes miss low-level storms?
Because the Earth is curved, radar beams travel upward as they move away from the transmitting site. Distant storms may occur entirely beneath the radar beam or overshoot the lowest atmospheric layers, limiting the detection of shallow low-level rotation.
What is a correlation coefficient anomaly on a radar display?
The correlation coefficient measures the similarity of shapes within a radar sample volume. A sudden drop in correlation coefficient within a storm core typically indicates non-meteorological targets like building debris, confirming a destructive tornado is on the ground.
How often does the national radar network complete a full atmospheric scan?
Standard volume coverage patterns allow the radar to complete a full sequence of tilts ranging from low to high elevation angles every 4.5 to 6 minutes, balancing spatial detail with temporal update frequency.
Optimizing Meteorological Situational Awareness
Utilizing national weather doppler radar effectively requires understanding both the physical limitations of electromagnetic beam propagation and the advanced analytics of modern dual-polarization products. By integrating high-resolution base data with real-time warning algorithms, stakeholders across aviation, emergency management, and public safety can maintain situational awareness during critical weather events. Always cross-reference multiple radar tilts and official National Weather Service bulletins to ensure comprehensive protection against severe atmospheric threats.
