The Ultimate Guide To Professional Pendant Light Installation For 2026
Pendant light installation is a specialized home improvement task requiring a synthesis of electrical engineering compliance, structural assessment, and interior design precision. This guide addresses the technical requirements for installing hanging lighting fixtures in residential and commercial settings during the 2026 fiscal year, focusing on adherence to the National Electrical Code (NEC) and current safety standards.
Decoding the NEC Standards for Lighting Fixtures in 2026
Electrical safety remains the primary barrier to successful pendant light installation. As of 2026, the National Electrical Code (NEC) mandates stringent requirements for junction box weight ratings and grounding protocols. When installing a pendant, the junction box must be specifically rated for the weight of the fixture.
Standard ceiling junction boxes are typically rated for fixtures weighing up to 50 pounds. However, if your pendant design utilizes heavy materials such as blown glass, solid brass, or oversized iron cages, you must verify the box’s "Luminaire Support" rating. Installing a high-mass pendant on a standard lightweight box is a violation of building codes and poses a severe risk of mechanical failure.
Furthermore, 2026 safety guidelines emphasize the necessity of continuous grounding. Every metal fixture housing must be bonded to the equipment grounding conductor (typically the green or bare copper wire) within the circuit. Failure to provide a redundant path to ground can lead to electrical shock should a live wire make contact with the fixture chassis due to insulation degradation over time.
Critical Pre-Installation Structural Assessment
Before initiating the mounting process, you must evaluate the ceiling substrate to determine the appropriate anchor system. Pendant lights are categorized by their mounting mechanism, which dictates the type of hardware required.
- Dead-Weight Capacity Check: Verify that the ceiling joist or structural blocking can support the static load of the fixture plus a 25% safety margin.
- Electrical Circuit Analysis: Assess if the circuit is shared with high-draw appliances. Installing decorative lighting on a circuit nearing its 80% load capacity (NEC standard for continuous load) can lead to nuisance breaker tripping.
- Material Compatibility: Determine if the ceiling is standard drywall, lath and plaster, or suspended metal grid. Each material requires different toggle bolt specifications or mounting plates.
KUZCO PD62622 Ceiling LED Pendant Light Installation Guide
Essential Tooling and Component Inventory
Executing a professional-grade installation in 2026 requires specific instrumentation to ensure both aesthetic leveling and electrical integrity.
| Tool Category | Required Specification | Purpose |
|---|---|---|
| Electrical Testing | Non-contact voltage tester (CAT III/IV) | Verifying circuit status before contact |
| Precision Leveling | Laser level or 2-foot torpedo level | Ensuring fixture symmetry |
| Mechanical Support | Rated junction box (50lb+ capacity) | Meeting 2026 safety load codes |
| Wire Management | WAGO connectors or wire nuts (UL Listed) | Ensuring stable, low-resistance connections |
| Fastening | Toggle bolts or structural screws | Anchoring canopy to non-joist ceilings |
Technical Installation Workflow
Following these steps ensures compliance with modern residential standards. Always disconnect the power at the main service panel before beginning work.
- Step 1: Power Verification. Utilize a multimeter to confirm zero voltage across all conductors in the ceiling box. Never rely solely on wall switch positioning.
- Step 2: Junction Box Integrity. If the existing box is loose or lacks a structural brace, install a fan-rated or heavy-duty luminaire support brace. These are adjustable bars that span between two joists, providing superior weight distribution.
- Step 3: Height Calibration. Calculate the pendant drop height relative to the surface below (e.g., a dining table). In 2026, the ergonomic standard for pendant clearance is 30 to 36 inches above the tabletop to minimize visual obstruction while maximizing task illumination.

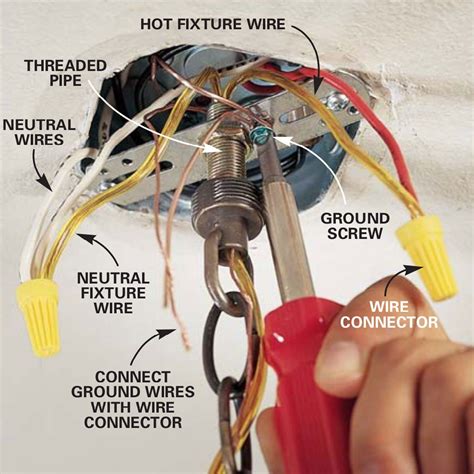

- Step 4: Wiring Termination. Strip 5/8 inch of insulation from the conductors. Connect the fixture’s green/ground wire to the supply ground, followed by the white (neutral) to the supply neutral, and finally the black (hot) wire. Use torque-tested wire connectors to prevent thermal expansion issues.
- Step 5: Canopy Securing. Carefully fold wires into the junction box, ensuring no pinching occurs. Fasten the canopy using the provided hardware, ensuring the finish remains scratch-free.
Comparison of Pendant Mounting Methodologies
The following table provides a breakdown of common installation types and their respective 2026 suitability for modern residential architectures.
| Mounting Style | Complexity | Structural Requirement | Best Application |
|---|---|---|---|
| Direct Box Mount | Low | Requires stud-mounted box | Light-duty decorative pendants |
| Structural Brace | High | Requires joist access | Large, heavy chandeliers or multi-light units |
| Track Adaptation | Moderate | Requires compatible track rail | Commercial offices and retail displays |
| Sloped Ceiling Kit | Moderate | Requires swivel-head canopy | Vaulted or cathedral ceiling layouts |
Troubleshooting Common 2026 Installation Issues
Over-Voltage and LED Flickering Many modern LED pendants are sensitive to voltage fluctuations. If flickering occurs after installation, verify that your wall dimmer is compatible with the fixture’s specific driver. In 2026, standard TRIAC dimmers are often incompatible with advanced ELV (Electronic Low Voltage) drivers found in high-end pendants.
Mechanical Imbalance If the fixture does not hang plumb, check for wire crowding within the canopy. Excess wire length can push against the canopy plate, causing an uneven tilt. Carefully dress the wires to one side of the mounting bracket to allow the canopy to sit flush against the ceiling.
Frequently Asked Questions
Can I install a heavy pendant light on a standard drywall anchor? No. Drywall anchors are strictly prohibited for lighting fixtures under current 2026 electrical codes. Pendants must be mechanically anchored to a junction box that is either secured to a joist or supported by an approved metal bracing system.
What is the required clearance for a pendant over a kitchen island? For optimal utility and safety, standard industry practice recommends 30 to 36 inches from the countertop surface to the bottom of the pendant. This clearance prevents the user from hitting their head while providing focused task lighting.
Why does my new LED pendant hum when I dim the lights? Humming, or "audible noise," typically results from a mismatch between the fixture’s internal driver and the wall-mounted dimmer switch. Ensure your dimmer is specifically rated for LED loads and matches the forward-phase or reverse-phase requirements of your fixture.
Does a pendant light require a separate circuit? Generally, no. Pendant lighting can be added to an existing 15-amp or 20-amp lighting branch circuit, provided that the total wattage of all fixtures on that circuit does not exceed 80% of the circuit breaker’s rated capacity.
Should I use stranded or solid wire for the connection? The supply wiring in your home is typically solid copper, while fixture wires are often stranded. Always use appropriately sized wire connectors (such as spring-loaded lever connectors) designed to accommodate the connection of different wire types safely.
Professional Consultation and Compliance
For complex installations involving heavy architectural lighting or vaulted ceiling heights, consult with a licensed electrician. Ensure that your installer provides a Certificate of Electrical Inspection to satisfy your home insurance policy requirements for the 2026 term. Proper documentation of the installation ensures your coverage remains active and your property value is protected.
